2.0 ton mini Excavator -MK20UL
2.0 ton mini Excavator -MK20UL
Operating weight 2000kg
Volume of Bucket 0.05m3
Engine model 3TNV70-XBV
Power 10.1kw

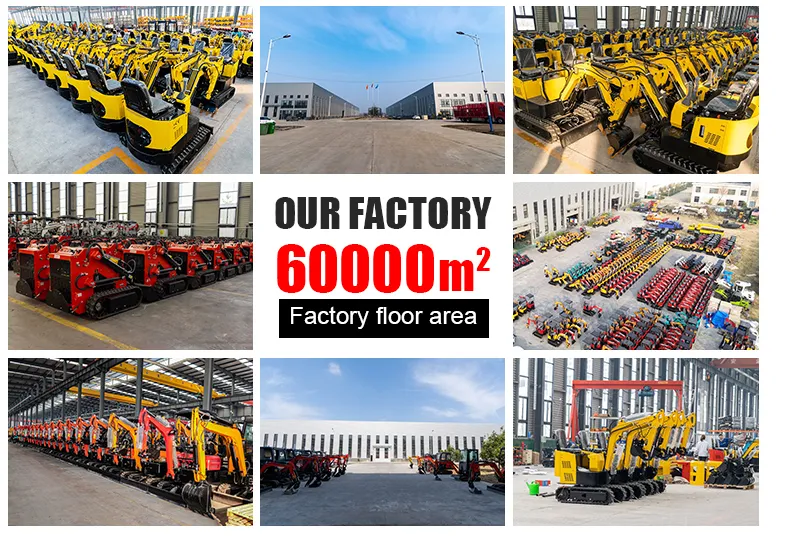

At Shandong Mingko Industry Corporation,we take pride in being professionalmanufacturers of top-quality mini excavators,dedicated to sparing you any worrieswhen it comes to construction equipment.
Leveraging our cutting-edge technology and an unwavering commitment to quality,we ensure that our powerful and highly versatile lineup of mini excavators will not onlymeet but far exceed your expectations.Each piece of equipment is meticulouslycrafted,integrating the latest advancements in engineering to guarantee optimalperformance in diverse working scenarios.
Trust in our expertise and let us empower you to achieve remarkable results in yourconstruction endeavors.
.webp)

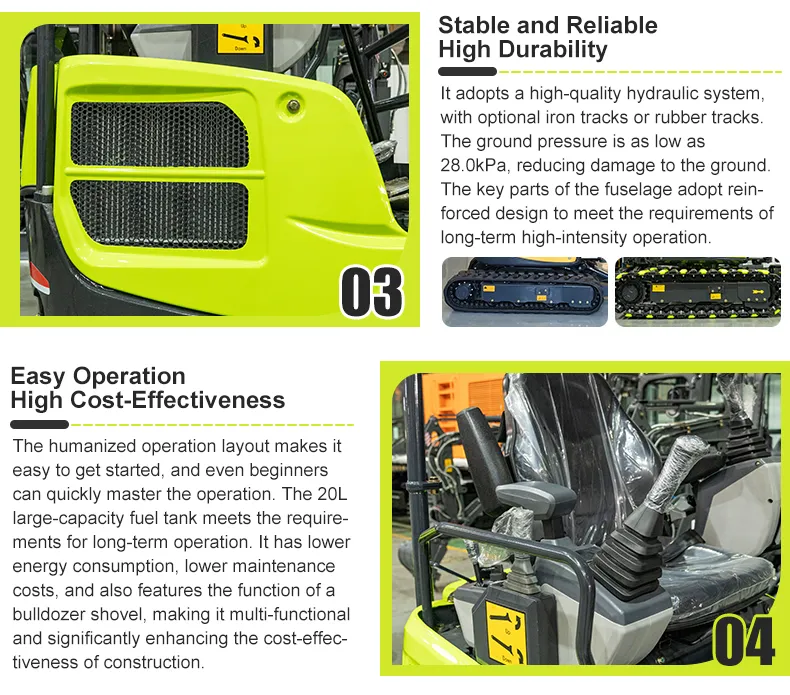

The MK20UL mini excavator is a high-efficiency operating equipment specially designed formultiple scenarios such as small-scale projects,municipal maintenance,garden care,andinterior decoration.With a flexible 1700kg body and 10.1kW powerful power,it performs ex-cellently in narrow space operations,ensuring stable excavation performance while havingconvenient transportation and operation advantages,making it an ideal choice for small andmedium-sized construction projects.
.webp)
MK20UL TECHNICAL SPECIFICATIONS
| Gross weight | 2000kg | Output power/speed | 10.1kw/2200rpm |
| Weight of main machine | 1860kg | Bucket Capacity | 0.05m3 |
| Engines Model | 3TNV70-XBV | Bucket Width | 450mm |
| Engines Types:In-line water-cooled three-cylinder direct injection diesel engine | |||
SCOPE OF WORK

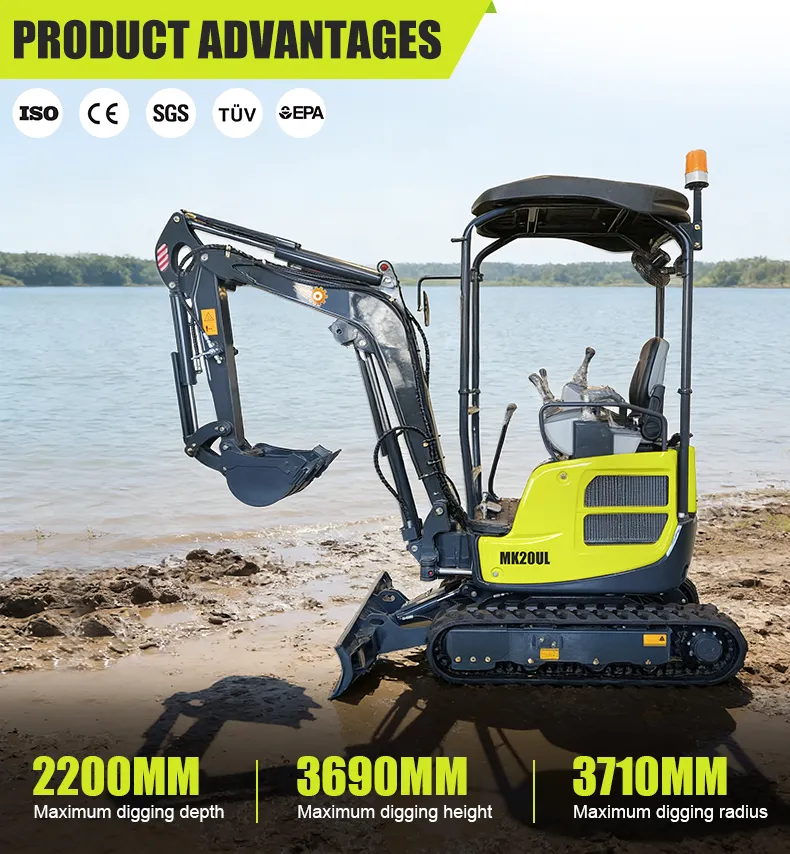

| Maximum digging depth | 2200mm |
| Maximum vertical digging depth | 1850mm |
| Maximum digging height | 3690mm |
| Maximum digging height | 2630mm |
| Maximum digging radius | 3710mm |
| Minimum radius of swing at front end (at lateral swing) | 1520mm（1290mm） |

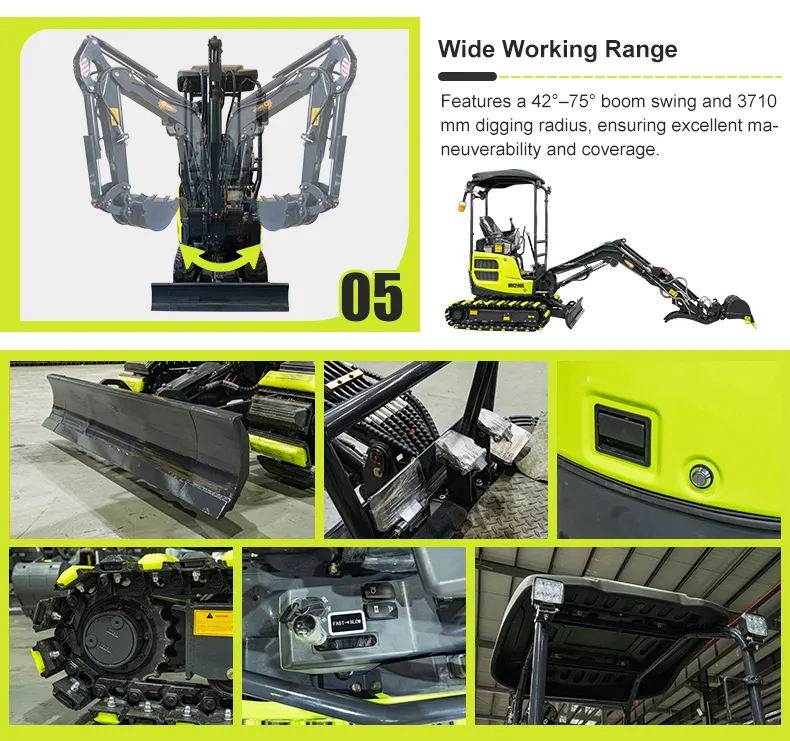

| Lateral swing of boom (left/right) | 42° / 75° |
PERFORMANCE
| Maximum digging force (kN1 (kgf)) | 15.2(1550) |
| Travel speed (km/h) | 3.8 / 1.9 ( 4.3 / 2.1 ) |
| Swing speed (min-1 (rpm)) | 9.5 |
| Iron track ground pressure (kPa (kg/cm2)) | 29.0(0.30) |
| Rubber track ground pressure (kPa (kg/cm2)) | 28.0(0.29) |
| Hydraulic system | |
| Pump flow rate (L/min) | 17.6×2 (variable) ·13.2×1 (gear) |
| Main overflow pressure (Mpa (kg/cm2)) | 20.6(210)×2 16.7(170)×1 |
UNDERCARRIAGEBLADE
| Track form Iron | tracks(rubber tracks) |
| Track width | 230mm |
| Ground clearance | 175mm |
BLADE/OIL TANKT
| Width x height | 950mm/1280mm×235mm |
| Lift | 260mm·205mm |
| Oil tank Capacity | 20L |

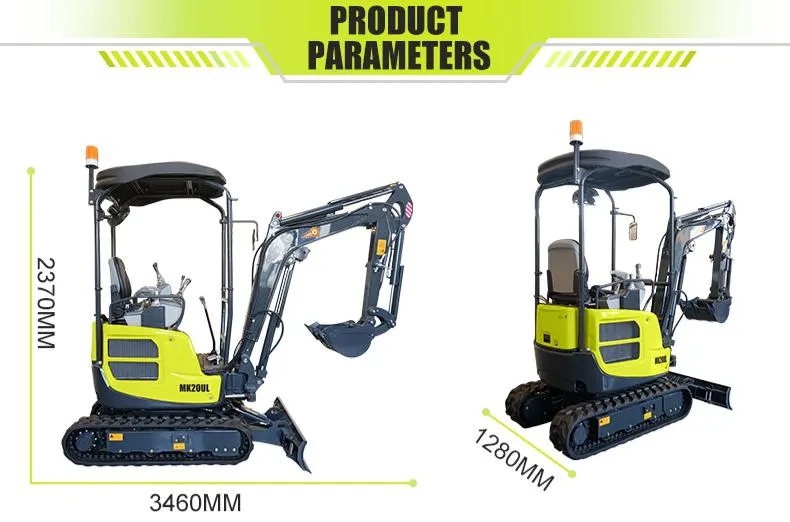

SHIPPING DIMENSIONL
| L×W×H | H3460mm×1280mm(950mm)×2370mm |
.webp)
This type of excavators are mainly applied to:
farming,landscaping,ditching and fertilization in garden,vegetable
greenhouse,agricultural transformation,indoor demolition,small earthwork,civil engineering,road recovery,basement and indoor construction,concretebreaking,burying of cable,laying of water supply line,garden cultivation,desilting and others.
