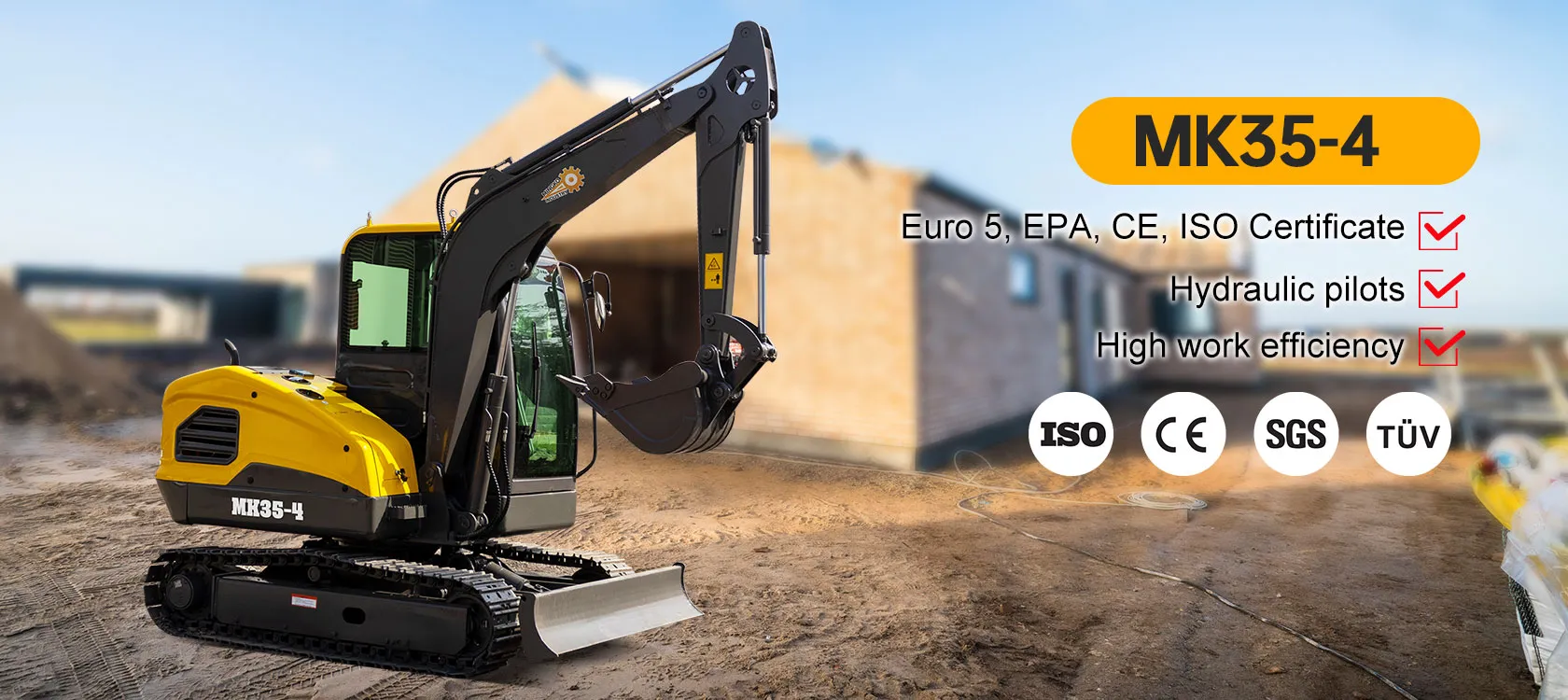

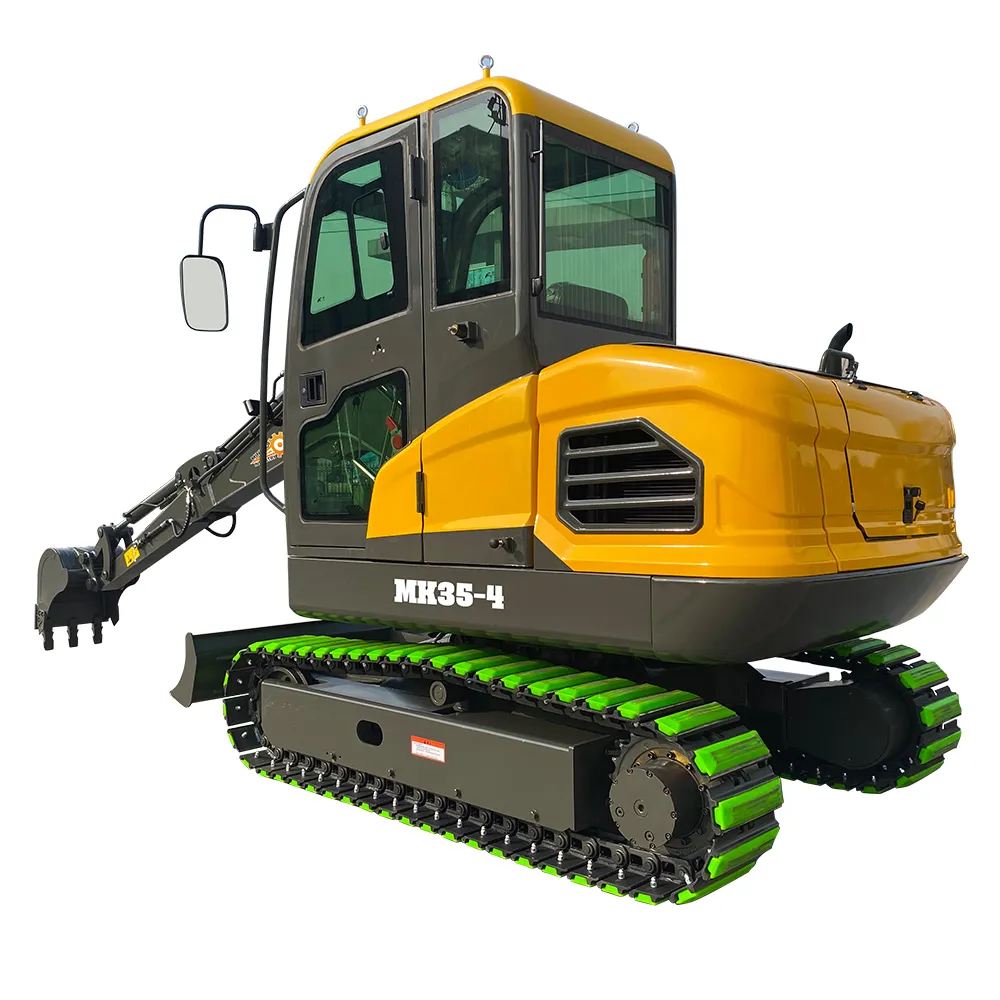

3.5 Ton Mini Excavator-MK35-4
3.5 Ton Mini Excavator-MK35-4
Model:MK35-4 Mini Excavator
Operating weight :3600kg
Engine :Euro 5 EPA ZN490 34KW
Speed:Double speed
Valve:Hydaulic Pilot valve control
Bucket:0.26CBM
Max Digging Depth:2545mm
Max Digging Height:4450mm
Tail:Zero Turn
Your Reliable Mini Excavator 35 Manufacturer & Supplier
Shandong Mingko Industry Corporation is a trusted manufacturer and supplier of the Mini Excavator 35, offering high-performance, cost-effective, and durable excavators. Our products are designed to meet the needs of construction companies and individual buyers, providing efficiency, versatility, and excellent value. With over 15 years of experience, a professional design team, and international certifications like EPA, CE, and ISO 9001, we ensure top-notch quality and reliable after-sales service.
Mini Excavator 35 Introduction
The Mini Excavator 35 is a compact yet powerful machine designed for a wide range of excavation tasks. Whether you’re a large construction company handling heavy-duty projects, a small business seeking cost-efficient solutions, or an individual owner needing a user-friendly excavator, this machine delivers exceptional performance.
With a robust design, advanced hydraulics, and a fuel-efficient engine, it ensures optimal digging capacity and operational stability. It is ideal for urban construction, landscaping, agriculture, and road maintenance, offering flexibility in tight spaces.
How Can Our Excavators Help You Gain Benefits?
1. Improve Work Efficiency
The Mini Excavator 35 is engineered with high digging force, allowing faster and more precise excavation. This boosts overall productivity while reducing labor costs.
2. Reduce Maintenance and Operating Costs
Equipped with fuel-efficient engines and low-maintenance hydraulic systems, our mini excavator ensures long-term savings on operational expenses.
3. Enhance Competitiveness
Using advanced technology and innovation, our excavators help you complete projects efficiently, making your business more competitive in the market.
4. Easy to Operate and Maintain
Designed with user-friendly controls and a comfortable operator cabin, even first-time users can operate the machine with ease.
Technical Specifications
| ENGINE | |
| Emission Standard:Euro 5,EPA4 | Number of cylinder:3 |
| Model:CHANGCHAI /ZN490 | Max.torque:97.4N.m/1500rpm |
| Power /Rotation speed:34kw@2200rpm | Displacement :1.642L |
| Type : in-line,water cooled, 4-stroke ,mechanical pump, normally aspirated | |
| TRACK DRIVING SYSTEM | |
| Maximum Travel speed(High/low) :4.4/2.4km/h | Carrier roller(Each side):1 |
| Width of steeltrackshoe:300mm | Supporting roller(Each side):4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity:0.26m³ | Boom length:2535mm |
| Swing speed:12rpm | Arm length:1400mm |
| Maximum Grade ability:58%(30°) | Fuel tank capacity :40L |
| Ground pressure :32Kpa | Hydraulic oil tank capacity:44L |
| Maximum Bucket digging force:30.4KN | Engine oit capacity :7L |
| Maximum Arm digging force:18.2KN | Radiator capacity:3.8L |
| Hydraulic system pressure:22Mpa | Final drive:2*0.7L |
| Machine weight:3600kg | |
| MACHINE SIZE | |
| Overall dimension (L*W*H):4915mm*1720mm*2525mm | Minimum Ground clearance:295mm |
| Axle base(Track length on ground):1670mm | Swing radius at tail:860mm |
| Length of rubber track:2154mm | Swing radius at front:2538mm |
| Track gauge:1420mm | Height of blade:350mm |
| WORKING RANGE | |
| Maximum Digging height:4450mm | Minimum swing radius:2530mm |
| Maximum Dumping height:3050mm | Max.heightwhen min swing radius:3655mm |
| Maximum Digging depth:2545mm | Maximum Lifting height of blade:365mm |
| Maximum Vertical digging depth:2957mm | Maximum Cutting depth of blade:385mm |
| Maximum Digging distance(working radius):5480mm | Boom swing angle(Left/Right):55°/65° |
| Maximum digging distance (on ground).5359mm | |
Common Attachments
Enhance the versatility of your 35 Mini Excavator with these compatible attachments:
Why Choose Us?
Factory Strength: 50,000 sq meters real production area, 400+ production staff.
Customization Support: Minimum order quantity of 1 unit with tailored design options.
Strict Quality Control: Professional pre-shipment inspection team ensures defect-free products.
Global Certifications: EPA, CE, ISO 9001 certified, compliant with environmental standards in the U.S. and Europe.
Reliable After-Sales Service: 12-month warranty, free accessories, and video installation guidance.
Hassle-Free International Trade: Assistance with customs clearance for buyers with no import experience.
Working Scene
Urban Construction: Excavation in tight spaces
Landscaping: Tree planting and land clearing
Agriculture: Digging irrigation trenches
Demolition: Small-scale structure removal
Road Work: Ditching and utility installations
Certificates
Packaging & Shipping
FAQ
Q1: What is the minimum order quantity?
A: We support a MOQ of 1 unit, making it easy for individual buyers and small businesses to purchase.
Q2: Can I customize my Mini Excavator 35?
A: Yes! We offer customization options to meet your specific requirements.
Q3: How do you ensure product quality?
A: Our products undergo strict pre-shipment quality inspections by a professional team.
Q4: Do you provide after-sales service?
A: Yes, we offer 12-month warranty, free accessories, and video support for installation and maintenance.
Q5: How can I place an order?
A: Simply Contact Us via email or WhatsApp, and our sales team will guide you through the process.
