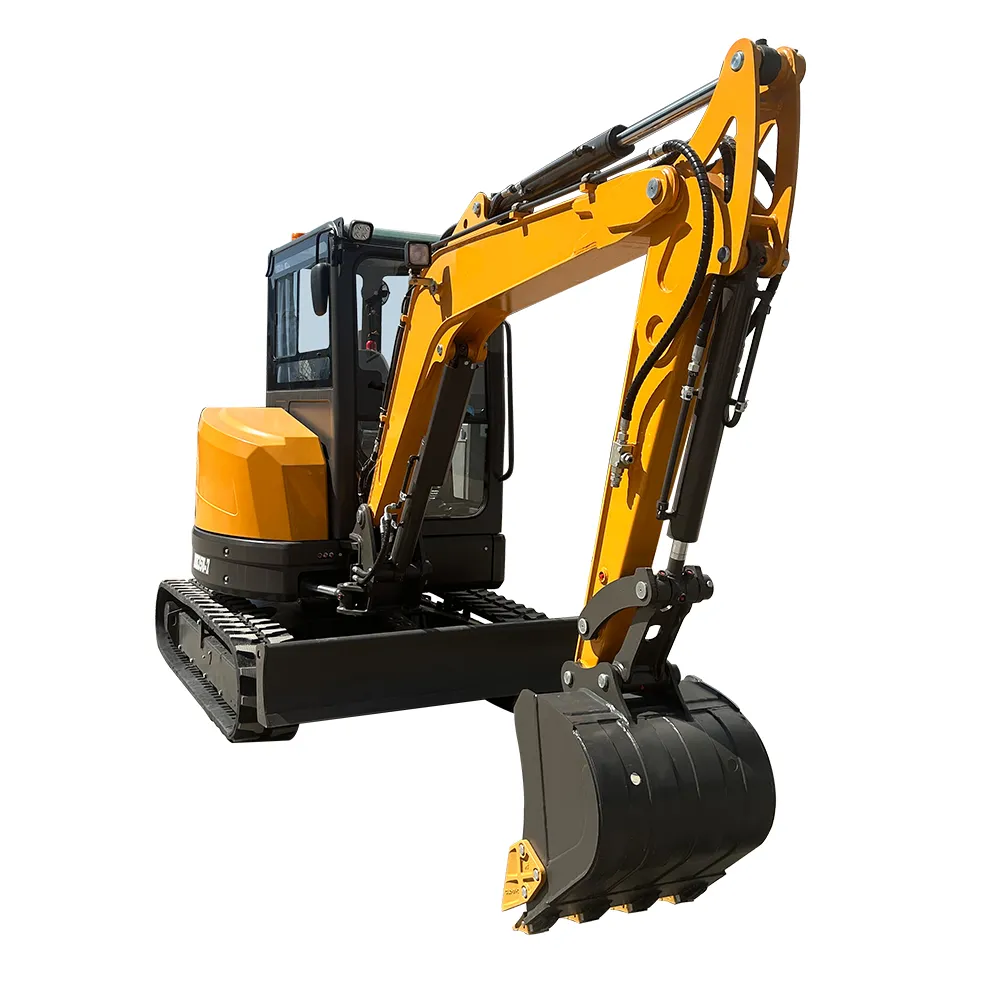

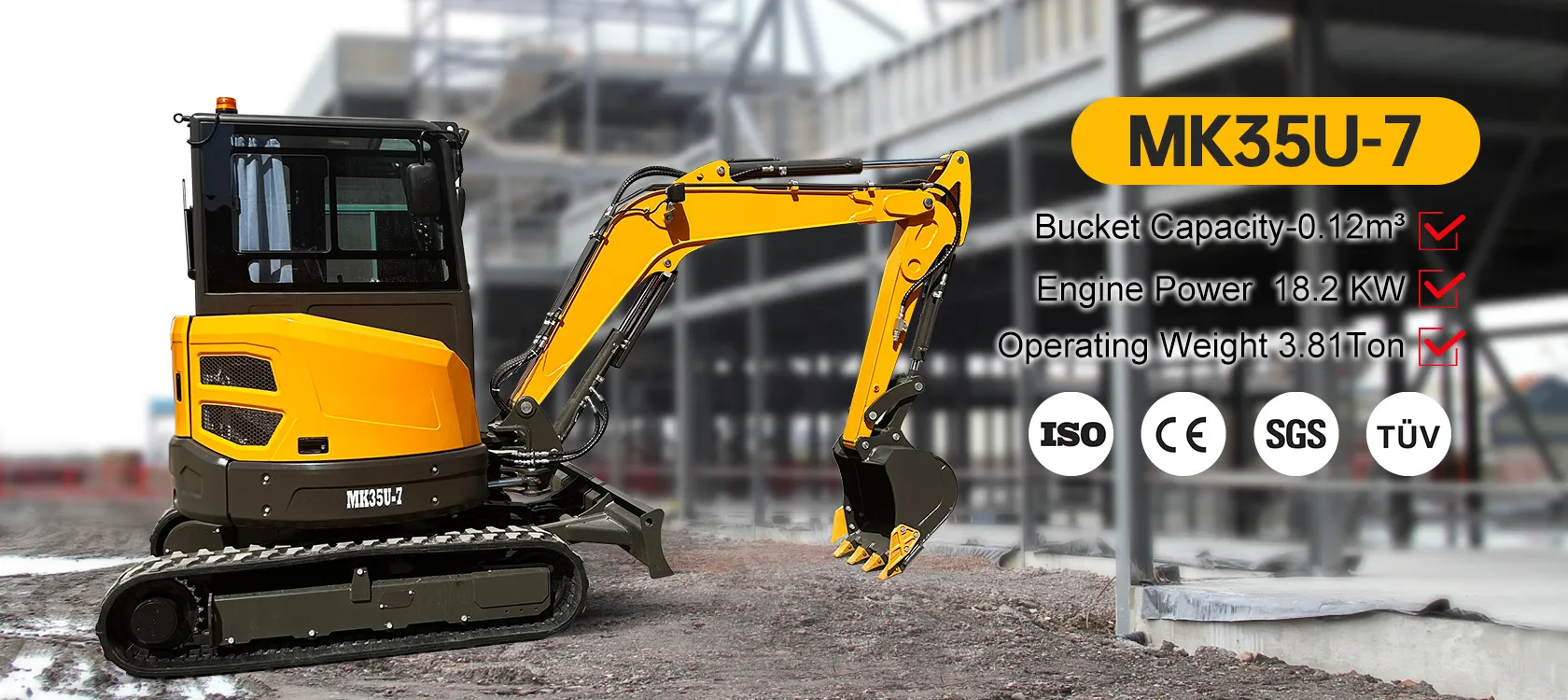

3.5 Ton Mini Excavator-MK35U-7
3.5 Ton Mini Excavator-MK35U-7
Model:MK35U-7 Mini Excavator
Operating weight :3810kg
Engine :Euro 5 EPA Kubota D1703 18.2KW
Speed:Double speed
Valve:Hydaulic Pilot valve control
Bucket:0.12CBM
Max Digging Depth:3208mm
Max Digging Height:4805mm
Tail:Zero Turn
35U-7 Mini Excavator Manufacturer & Supplier
Shandong Mingko Industry Corporation is a trusted manufacturer and supplier of the 35U-7 Mini Excavator, offering high-quality, durable, and cost-effective excavation solutions. With over 15 years of foreign trade experience, an ISO 9001 certification, and compliance with EPA and CE standards, our product ensures superior performance, reliability, and affordability to meet diverse market demands.
35U-7 Mini Excavator Introduction
The 35U-7 Mini Excavator is a powerful and compact machine designed for various excavation tasks, including trenching, digging, and material handling. Engineered for efficiency and ease of operation, this excavator is suitable for large construction companies, small and medium-sized businesses, and individual owners. With its advanced hydraulic system, fuel efficiency, and ergonomic design, it enhances productivity while reducing operating costs.
How Can Our Excavators Help You Gain Benefits?
For Large Construction Companies: Increase productivity with high digging power and durability, while reducing long-term maintenance costs.
For Small & Medium-Sized Construction Companies: Enjoy a balance of affordability and efficiency with a compact yet robust excavator.
For Individual Owners: Benefit from a lightweight and easy-to-operate machine, ideal for light excavation projects.
Cost Savings: Our excavators feature fuel-efficient engines and low-maintenance components, ensuring lower operational costs.
Enhanced Versatility: The 35U-7 Mini Excavator supports multiple attachments, making it suitable for diverse construction needs.
User-Friendly Operation: Intuitive controls and a comfortable cabin improve operator efficiency and safety.
Technical Specifications
| ENGINE | |
| Emission Standard:Euro 5,EPA4 | Number of cylinder:3 |
| Make /Model:KUBOTA /D1703 | Max.torque:97.4N.m/1500rpm |
| Power /Rotation speed:18.2kw(25HP)@2200rpm | Displacement :1.642L |
| Type : in-line,water cooled, 4-stroke ,mechanical pump, normally aspirated | |
| TRACK DRIVING SYSTEM | |
| Maximum Travel speed(High/low) :4.4/2.4km/h | Carrier roller(Each side):1 |
| Width of steeltrackshoe:300mm | Supporting roller(Each side):4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity:0.12m³ | Boom length:2535mm |
| Swing speed:12rpm | Arm length:1400mm |
| Maximum Grade ability:58%(30°) | Fuel tank capacity :40L |
| Ground pressure :32Kpa | Hydraulic oil tank capacity:44L |
| Maximum Bucket digging force:30.4KN | Engine oit capacity :7L |
| Maximum Arm digging force:18.2KN | Radiator capacity:3.8L |
| Hydraulic system pressure:22.5Mpa | Final drive:2*0.7L |
| Machine weight:3810kg | |
| MACHINE SIZE | |
| Overall dimension (L*W*H):4915mm*1720mm*2525mm | Minimum Ground clearance:295mm |
| Axle base(Track length on ground):1670mm | Swing radius at tail:860mm |
| Length of rubber track:2154mm | Swing radius at front:2538mm |
| Track gauge:1420mm | Height of blade:350mm |
| WORKING RANGE | |
| Maximum Digging height:4800mm | Minimum swing radius:2530mm |
| Maximum Dumping height:3406mm | Max.heightwhen min swing radius:3655mm |
| Maximum Digging depth:3208mm | Maximum Lifting height of blade:365mm |
| Maximum Vertical digging depth:2957mm | Maximum Cutting depth of blade:385mm |
| Maximum Digging distance(working radius):5480mm | Boom swing angle(Left/Right):55°/65° |
| Maximum digging distance (on ground).5359mm | |
Common Attachments
Why Choose Us?
Real Factory Advantage: Over 50,000 sq. meters of production space.
Professional Customization: Design support for tailored excavator solutions.
Strict Quality Control: Pre-shipment inspection ensures defect-free products.
24/7 Customer Support: Prompt assistance via online consultation and video calls.
Customs Clearance Assistance: Support for seamless international trade, even for first-time buyers
Working Scene
Urban Construction: Excavation in tight spaces
Landscaping: Tree planting and land clearing
Agriculture: Digging irrigation trenches
Demolition: Small-scale structure removal
Road Work: Ditching and utility installations
Certificates
Packaging & Shipping
FAQ
Q: What is the minimum order quantity (MOQ)?
A: We support an MOQ of just 1 unit, making it easy for small businesses and individual buyers.
Q: Does the 35U-7 Mini Excavator come with a warranty?
A: Yes, we provide a 12-month warranty and free spare parts.
Q: Can I customize the excavator?
A: Yes, we support customized configurations based on your specific needs.
Q: Do you offer installation and operation guidance?
A: Yes! We provide free video call support for installation and usage instructions.
